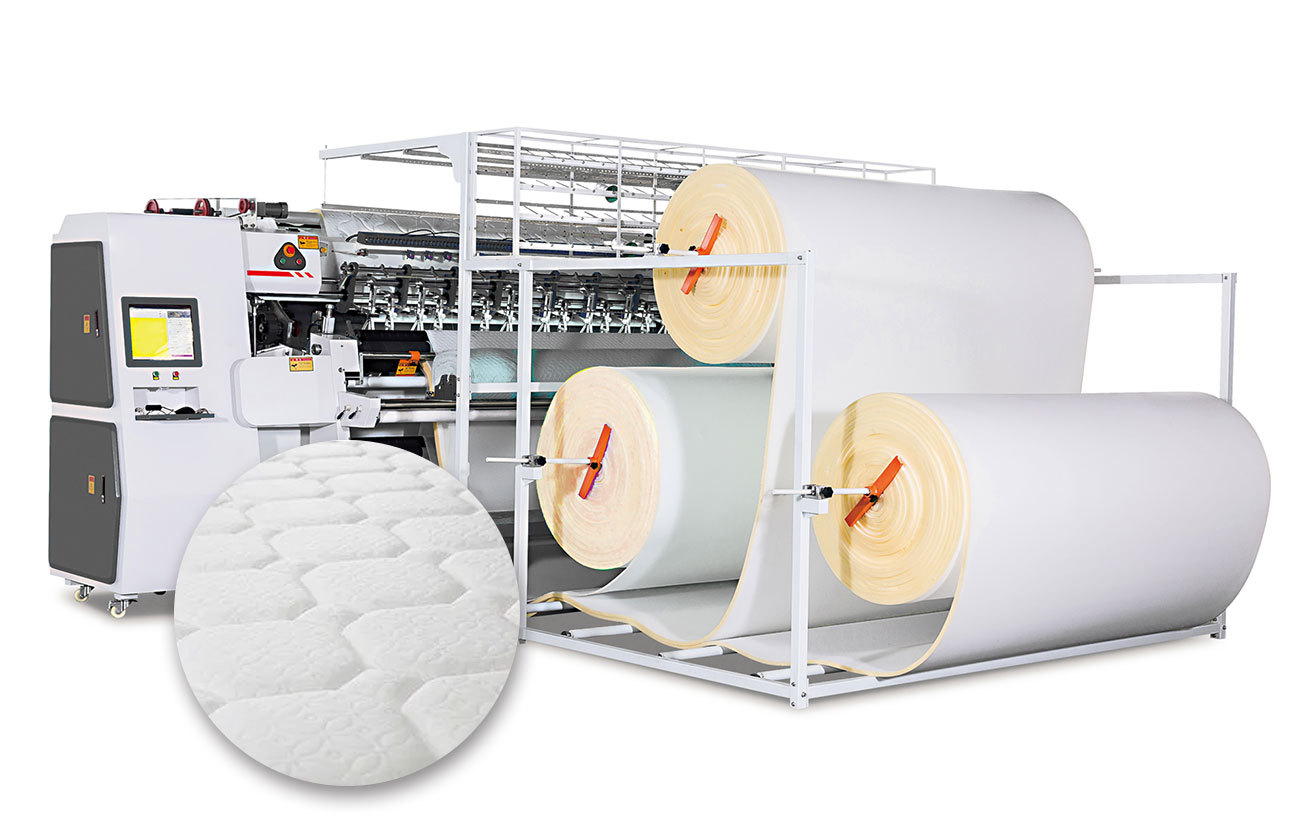

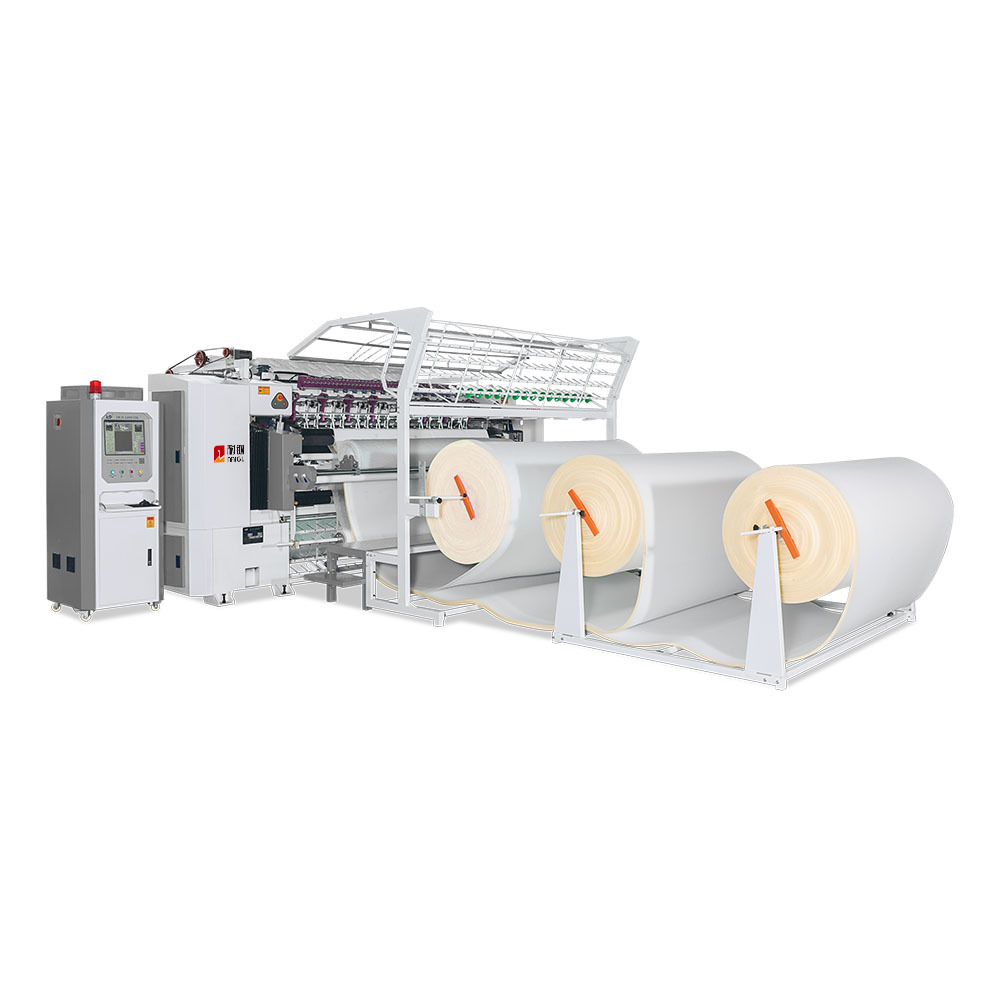

Computerized Chain Stitch Non Shuttle Multi-needle Quilting Machine (patented Invention)

The swing arms of the needle bar and the passive link bar in this machine are lengthened, resulting in a smaller needle swing and consequently smaller needle holes on the fabric. Additionally, the use of a special aluminum material allows for faster machine operation and reduced vibration.

60-300

m/h

Production Speed

5-13K

rpm

Main Shaft Speed

12.7/25.4

Space between

needles

3-8

Stitch length

Need More Details About This Multi-needle Quilting Machine?

Request A Quote

Convenient and fast custom fabric style controller

Our machinery is equipped with professional computer CNC software, which can import the fabric style you want and allow the machinery to produce it.
The machinery is equipped with various commonly used fabric styles. If you don't have a new style yet, you can try using our preset styles. I believe they are also very high-end styles

If you also have idea about the production of custom fabric style, then don't hesitate

Product Features

Industry First

With a needle pitch of 0.5 inches, it can process more specifications of patterns.

Industry First

Equipped with a slitting device, it can more accurately cut the surrounding strip with the swing energy of the saddle (optional).

Servo System

All three axes are controlled by a servo system, making sewing patterns more precise. The peripheral buttons control the forward and reverse rotation of the spindle, making hook adjustment easier.

Products Details

Work diagram

Technical specification

Dimension	5400×1650×2360mm
Space between needles	12.7/25.4mm
Main shaft speed	500-1300rpm
Quilting width	2450mm
Production peed	60-300m/h
Quilting thickness	≤80mm
Stitch length	3-8mm
Voltage	380V/220V 50Hz/60Hz 3Phase
Needle type	24/180 23/160 22/140 21/130
Power	11 KW
Space between needle rows	(50.8,76.2,127) 5"、 (76.2,76.2,152.4) 6"
