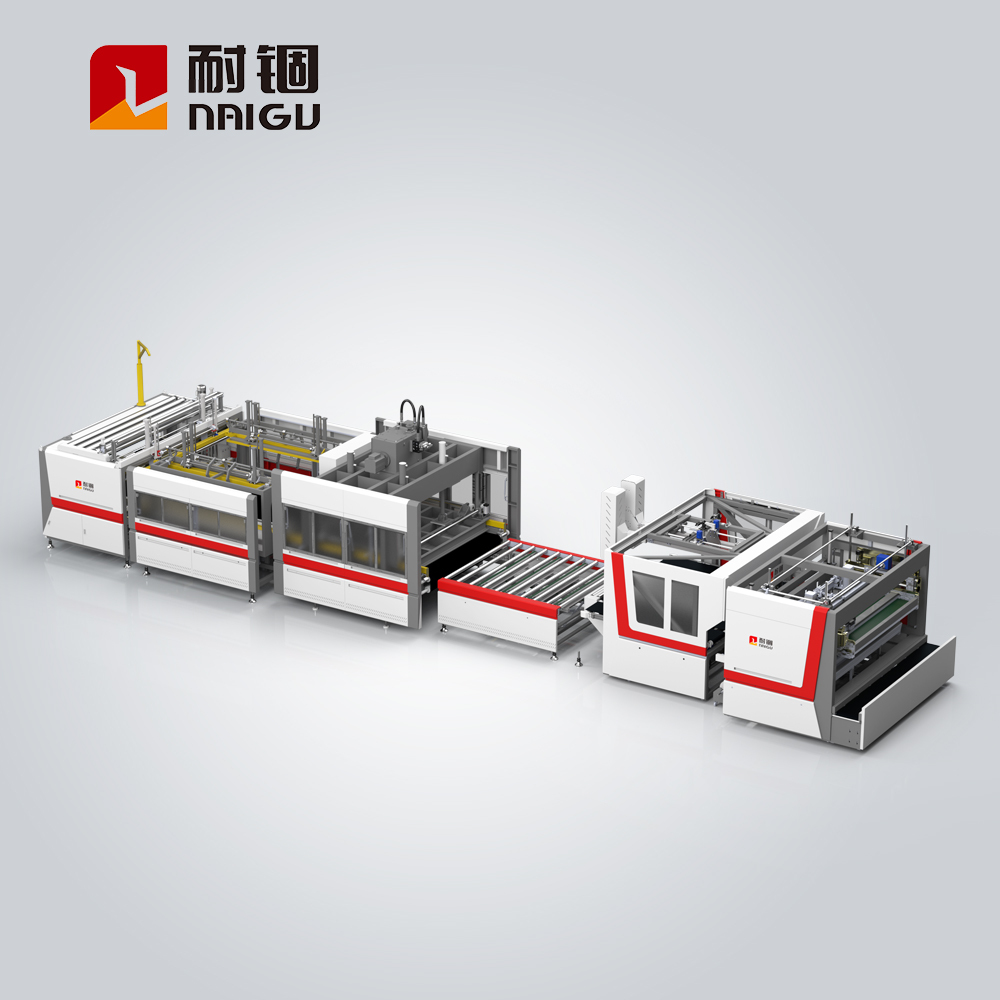

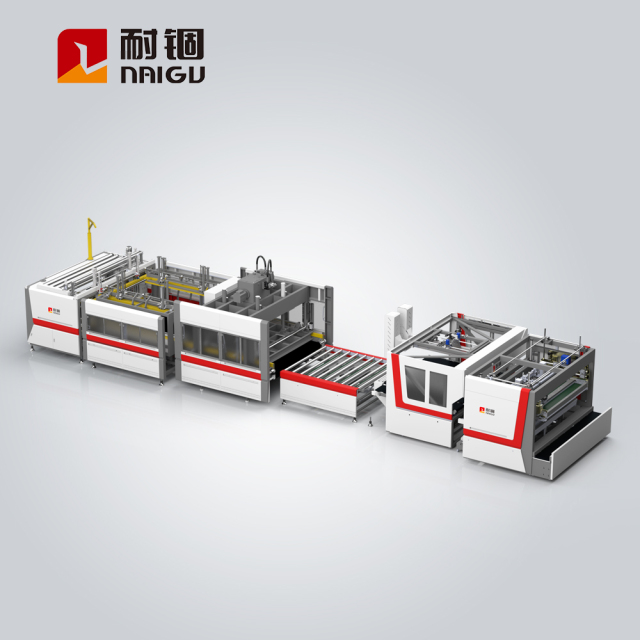

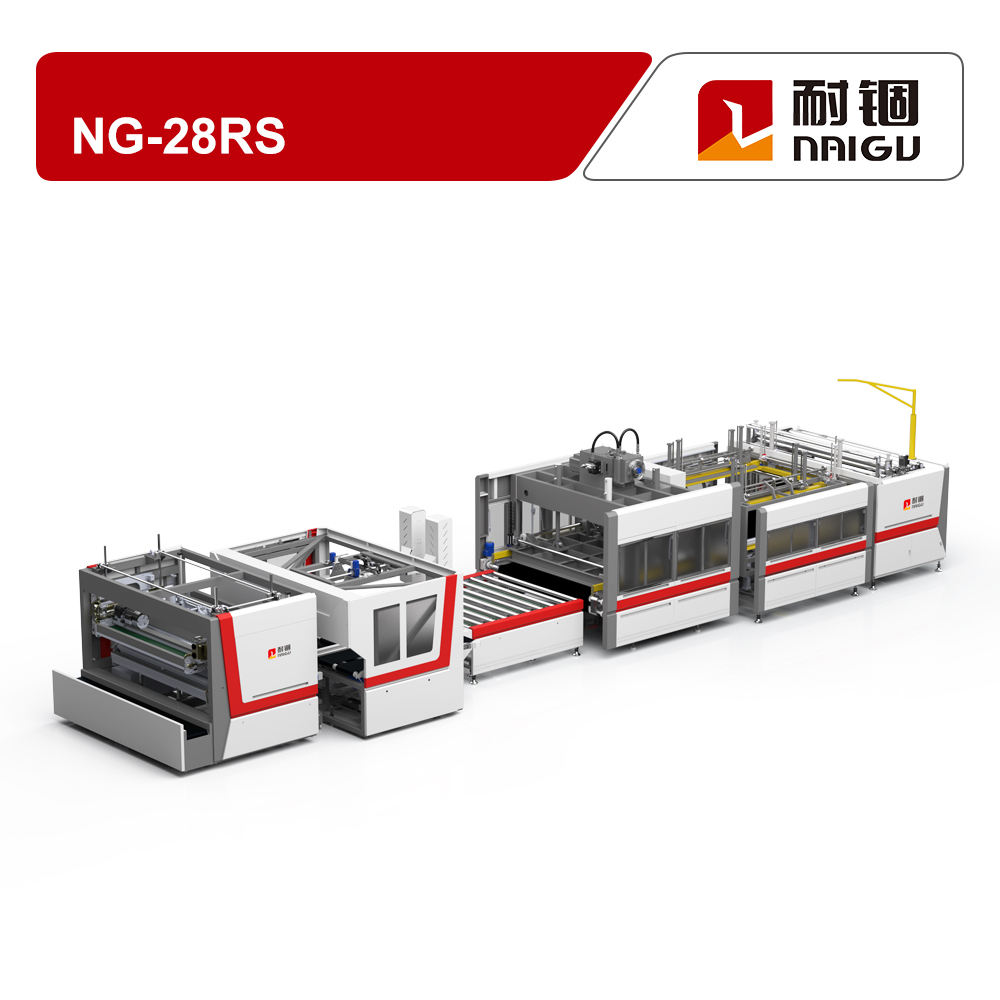

The NG-28RS Full Automatic Mattress Compression Fold Roll & Packing Machine is a fully automatic solution that compressesion, folds, rolls and packs finished mattresses in one continuous line — built for high-throughput factories that need reliable, space-saving logistics preparation. With intelligent PLC control and an integrated compression-to-roll workflow, it reduces labour, speeds up dispatch, and cuts freight costs by delivering compact, transport-ready mattress rolls.
Product description
The NG-28RS is NAIGU’s most advanced fully automatic mattress compression, folding, and roll-packing machine with an adjustable diameter function. It supports a wide range of mattress sizes and materials, and is capable of completing the entire packing process — from compression and folding to roll wrapping — without manual intervention.NG-28RS Full Automatic Mattress Compress Fold Roll & Packing Machine is designed for high-speed, fully automatic mattress packaging — including compression, folding, roll packing, and adjustable roll diameter. Ideal for large-scale production and export-ready packaging.
Technical specification
|
Maximum Mattress Size |
2300x2100 MM |
|
Maximum Mattress Height |
450 MM |
|
Roll diameter range(Adjustable) |
220 MM - 480MM |
|
Maximum Pressure |
60T |
|
Efficiency |
30 Seconds /PCS |
|
Total Power |
47KW |
|
Voltage |
3 Phase AC 380V/50HZ (Customized ) |
|
Suitable Plastic material |
PE Plastic |
|
Air pressure |
0.6 - 0.8 MPA |
|
Net weight |
17500 KG |
|
External Dimension |
L15000*W3600*H3100MM |
Product advantages
▶ Greatly save shipping and storage costs.
▶ Complete packaging functions, meet your various mattress packaging needs.
▶ Saving package cost; smaller mattress size means less packaging material.
▶ Two machine shape layouts to choose: straight line or corner type according to the site of your factory.
▶ Stable performance; uses Siemens control system ( PLC , HMI , Inverter ).
▶ Easy to use; the machine control panel can be translated into various languages and is equipped with a remote system for easy installation and maintenance.
