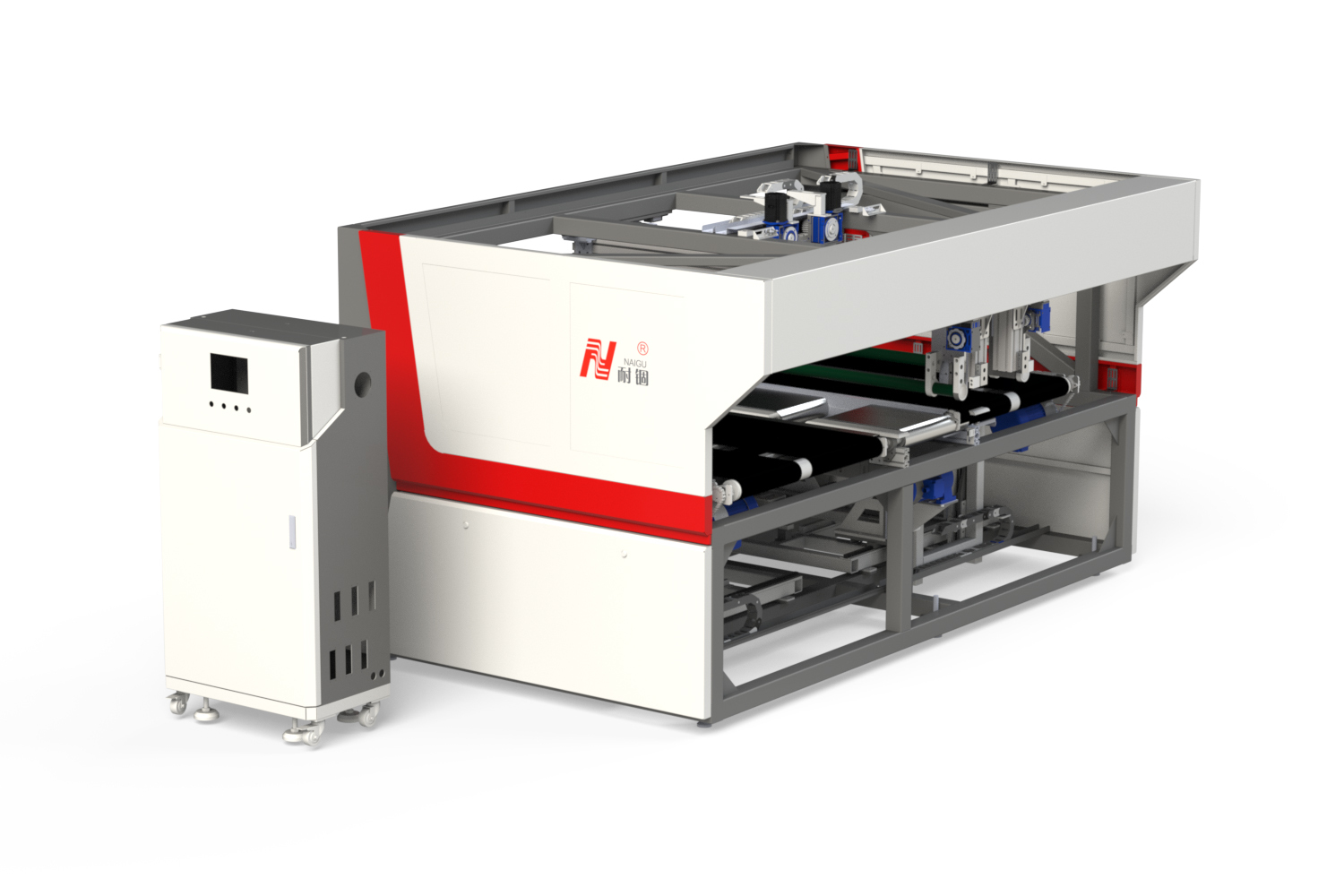

The NG-22Z is a high-efficiency packing machine designed specifically for sponge mats. It features a unique tri-fold folding mechanism that ensures compact, neat packaging, reducing volume for easier storage and transportation. This machine is fully automatic, offering stable performance, user-friendly operation, and enhanced productivity for mattress and foam product manufacturers. Ideal for improving packing speed and minimizing labor costs, the NG-22Z guarantees reliable compression and precise folding to meet modern packaging demands.
Product description
The mattress tri-folding machine is to triple-fold the mattress to achieve a smaller packaging effect, suitable for mattress with soft materials and larger sizes, such as compressed mattresses, foam pads, latex pads and memory foam mattresses. usually used in conjunction with a compression machine or rolling machine to get a better effect.
The front conveyor rises to fold the first third of the mattress atop the center. The back conveyor rises and folds the second third of the mattress atop the package to complete folding. The front conveyor returns to place. The back conveyor remains positioned holding the folds. The exit pushes the package to the roll cage.
Technical specification
| Size | 3300*2400*1700mm |
| Weight | 1.6T |
| Total power | 8KW |
| Mattress folding speed | 12S/PC |
| Conveying speed | 2.2m/2.5s |
| Pressing speed | 120mm/0.5s |
| Lifting speed | 500mm/1.5s |
| Folding speed | 800mm/2.5s |
