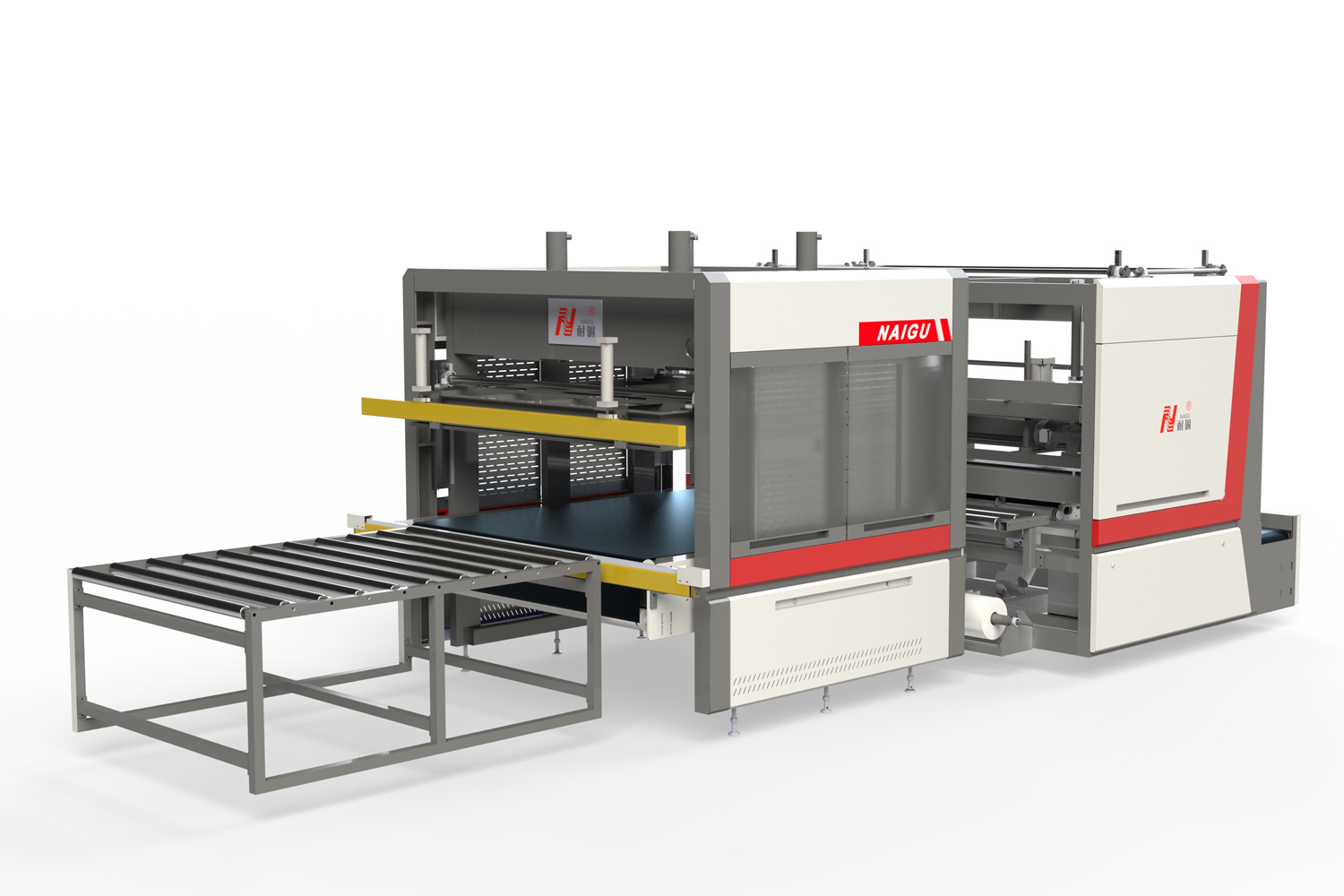

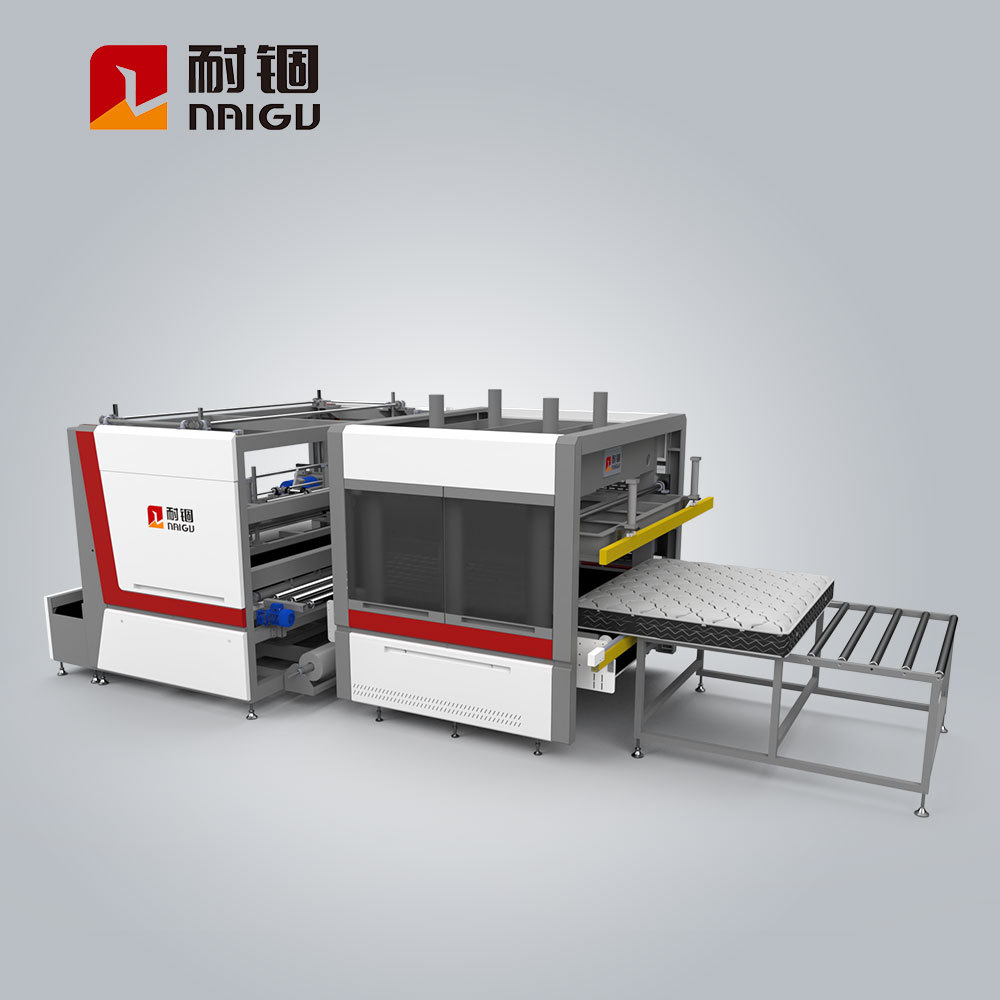

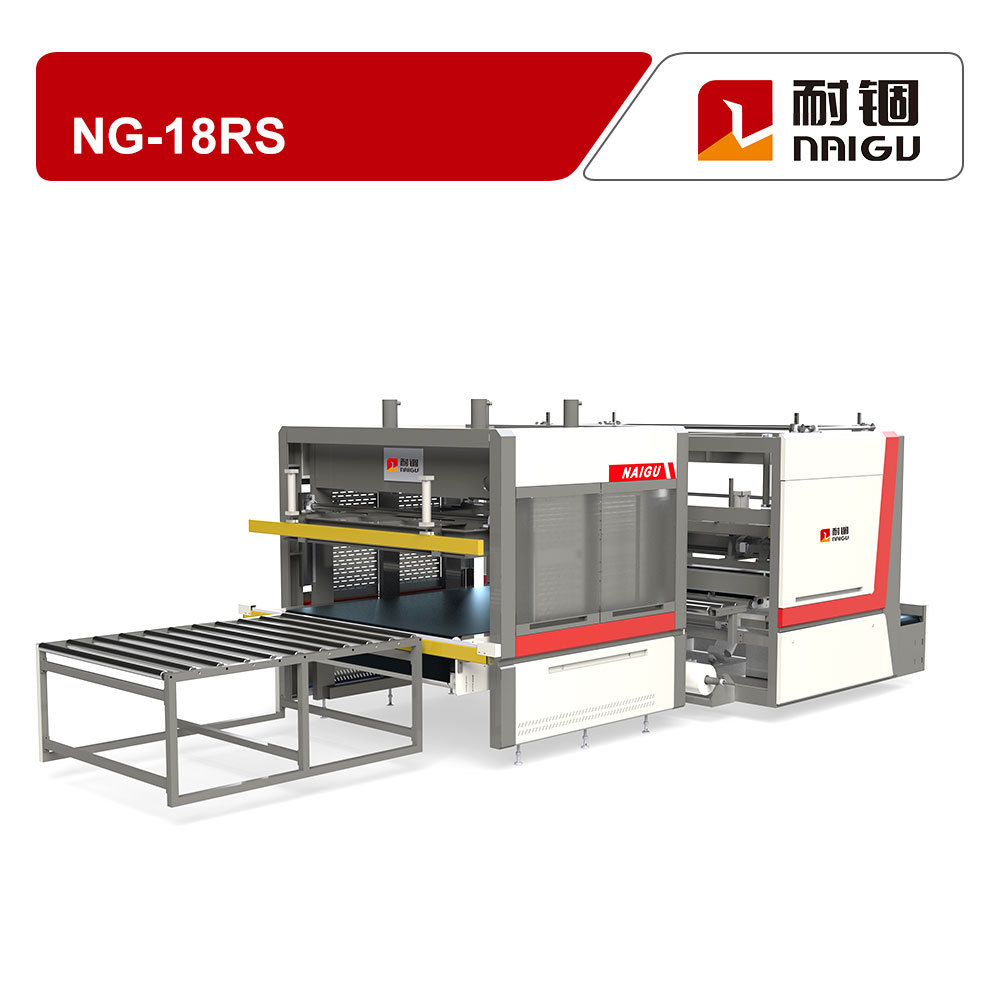

The NG-18RS Automatic Mattress Compression and Roll Packing Machine is a high-performance solution designed for modern mattress production lines. It combines automatic compression and roll packing in a single process, delivering fast, consistent, and space-saving packaging results.
This machine is ideal for foam mattresses, memory foam mattresses, and pocket spring mattresses. By compressing and rolling mattresses into compact packages, it significantly reduces storage space and transportation costs, making it especially suitable for export-oriented manufacturers.
With its advanced control system, the NG-18RS offers stable operation, precise compression, and easy adjustment. The automatic workflow reduces manual labor while improving production efficiency and packing consistency.
Technical specification
| Maximum Mattress Size | 2200x2000 MM |
| Maximum Mattress Height | 450 MM |
| Roll diameter range(Adjustable) | 220 MM - 480MM |
| Maximum Pressure | 60T |
| Efficiency | 30 Seconds /PCS |
| Total Power | 29 KW |
| Voltage | 3 Phase AC 380V/50HZ (Customized ) |
| Suitable Plastic material | PE Plastic |
| Air pressure | 0.6 - 0.8 MPA |
| Net weight | 7000 KG |
| External Dimension | L7400*W3380*H2550MM |
