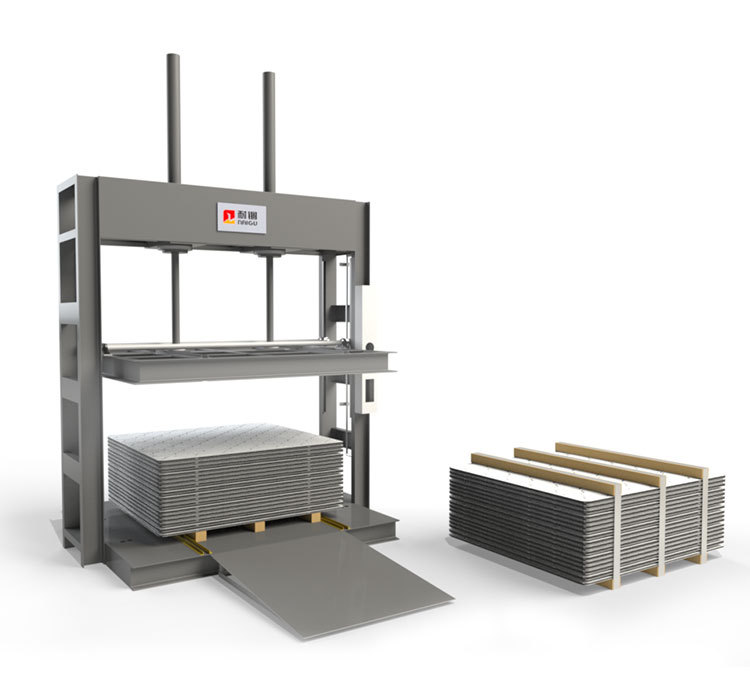

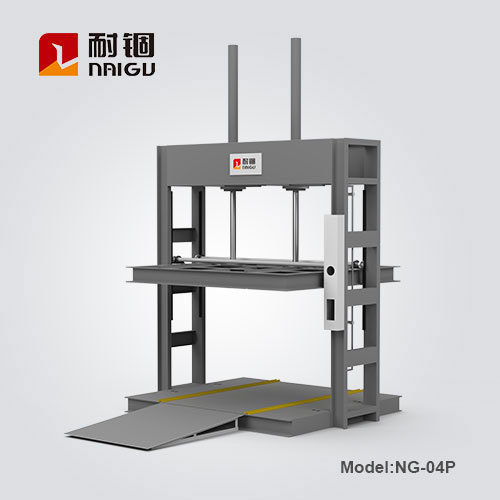

The NG-04P is a compact, high-efficiency secondary compression unit designed to further reduce mattress volume after primary processing. It quickly and evenly applies controlled pressure to improve packing density and surface finish, helping factories achieve smaller roll/pack sizes and more consistent downstream handling.
Product description
This is a secondary mattress compressor that compresses multiple mattresses that have been compressed once to achieve a further compression effect.
Technical specification
Pressure Plate Size | 2200*2430MM |
Travel Distance | 2200MM |
Minimum Closure Distance | 900MM |
Maximum Pressure | 50T |
Oil Cylinder No. | 2 PCS |
Oil Pump Power | 5.5KW |
Weight | 3 Tons |
Voltage | 3 Phases 380V/50HZ (Customized) |
Machine External Size | W2850*L3700*4400MM |
Product advantages
▶ Strong applicability; very suitable for spring mattresses (especially with frames), sponge mattresses, or whole pallet packaging of compressed sponge sheets.
▶ Greatly save costs of transportation and storage; through further reducing the size of the mattress.

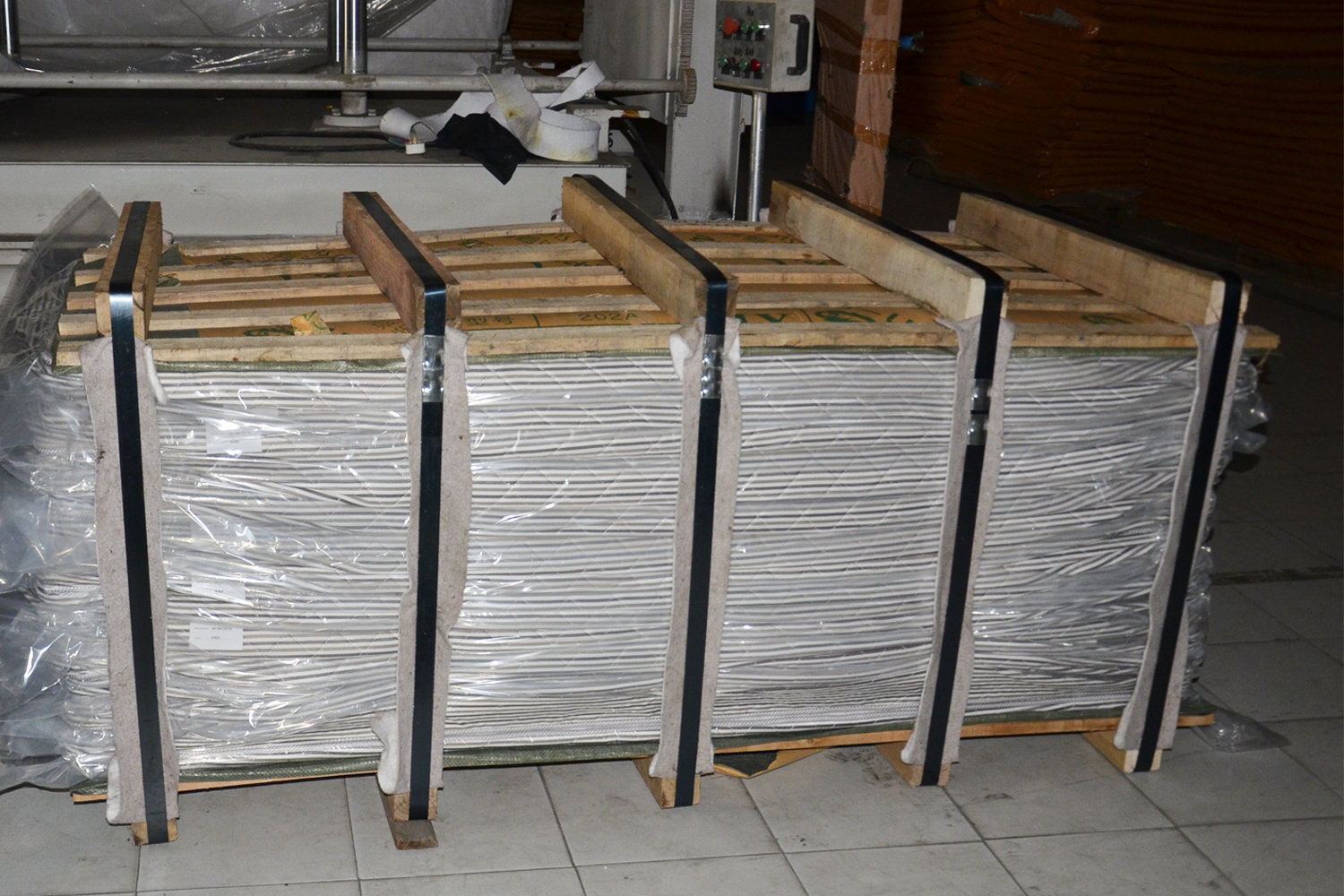

▶ High production efficiency and simple operation. Simply place the top and bottom protective wooden frames, place the mattress, press it to a suitable height, and then fix it with iron sheet and iron buckles.
▶ Low cost of packaging consumables.
▶ CE certification, high safety, stable performance, and convenient installation and maintenance.

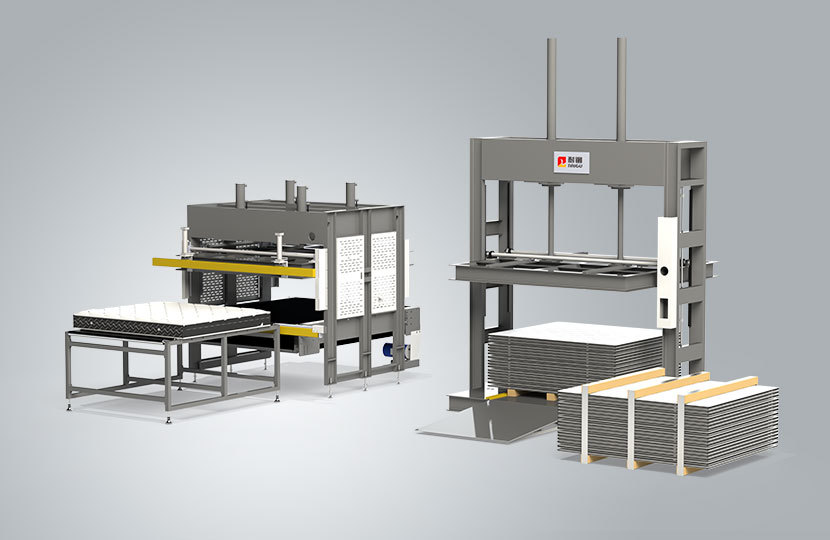

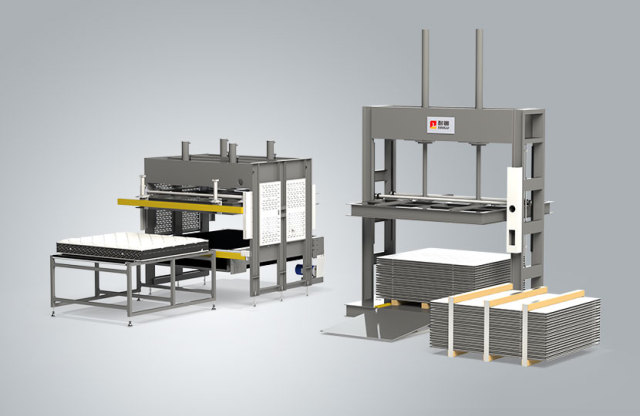

*This model is the most economical and practical combination with the 01M and 06R.
