Product description

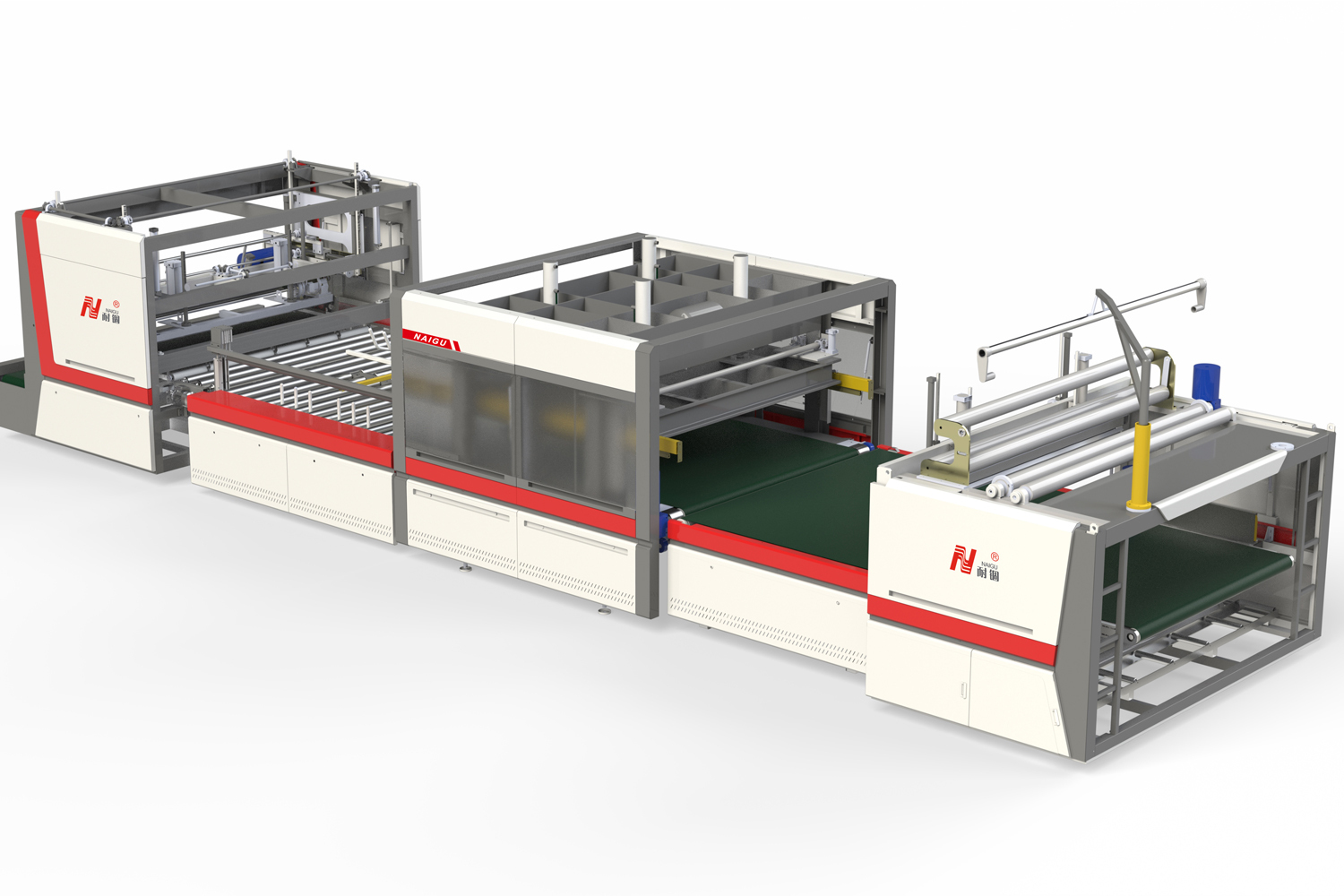

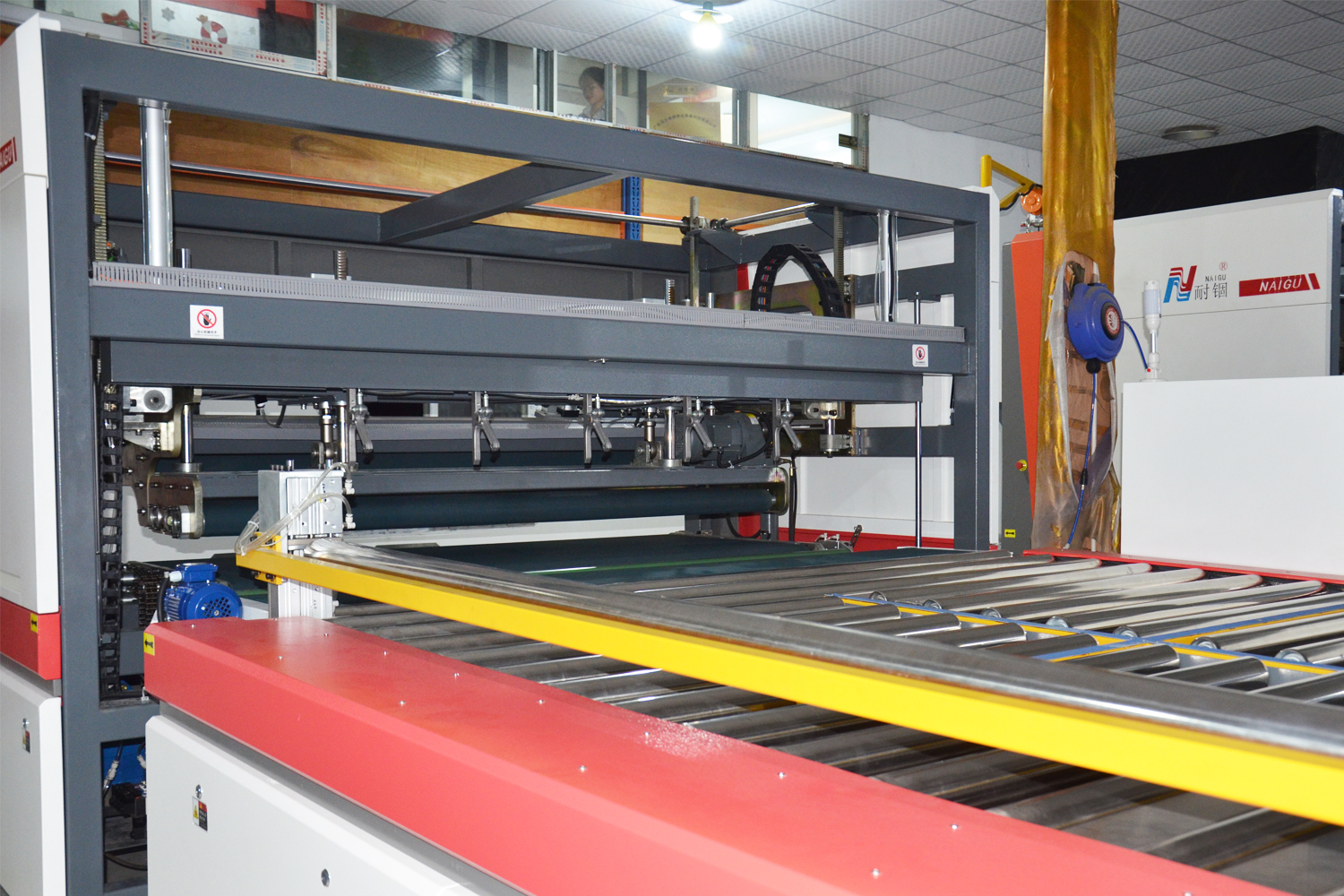

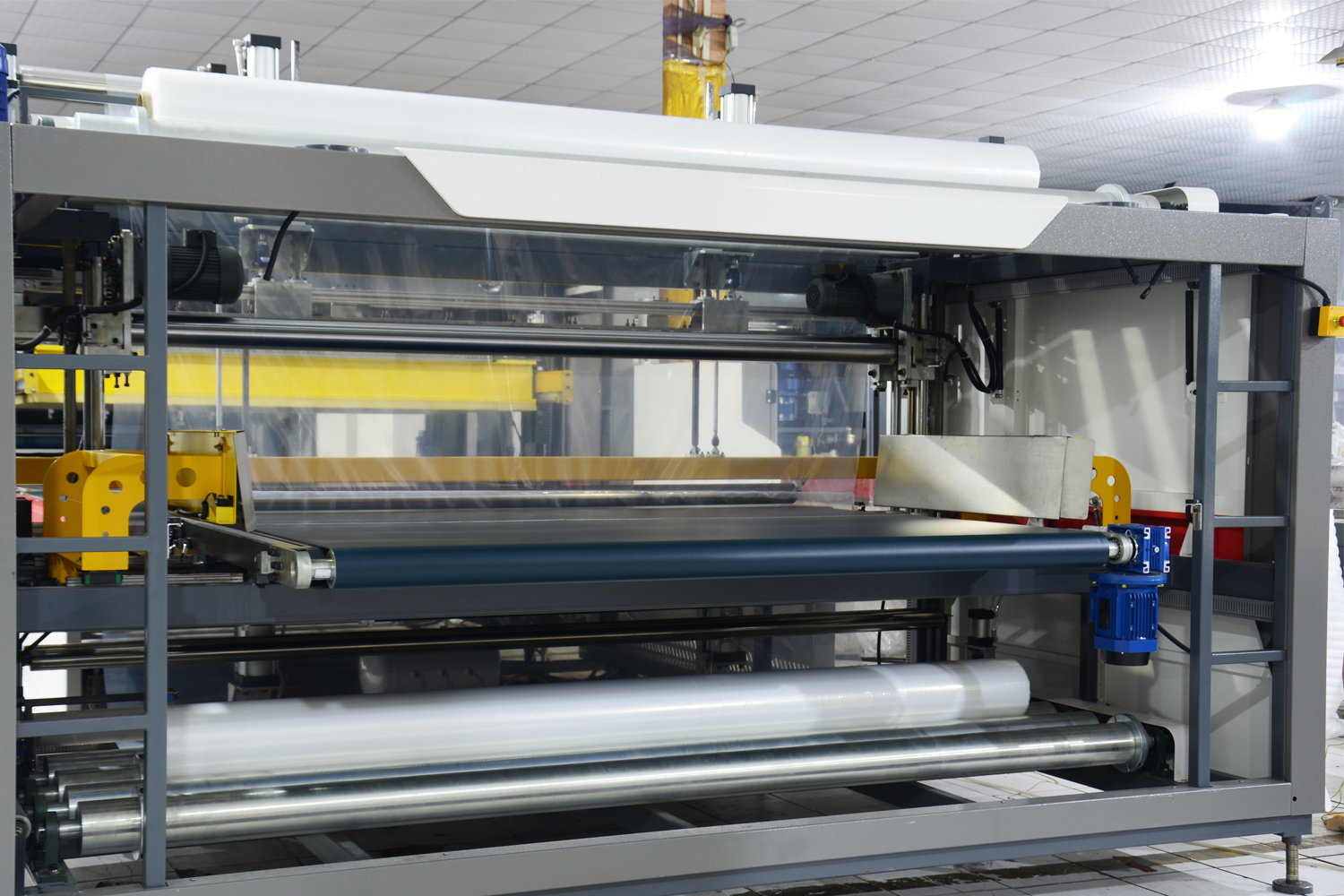

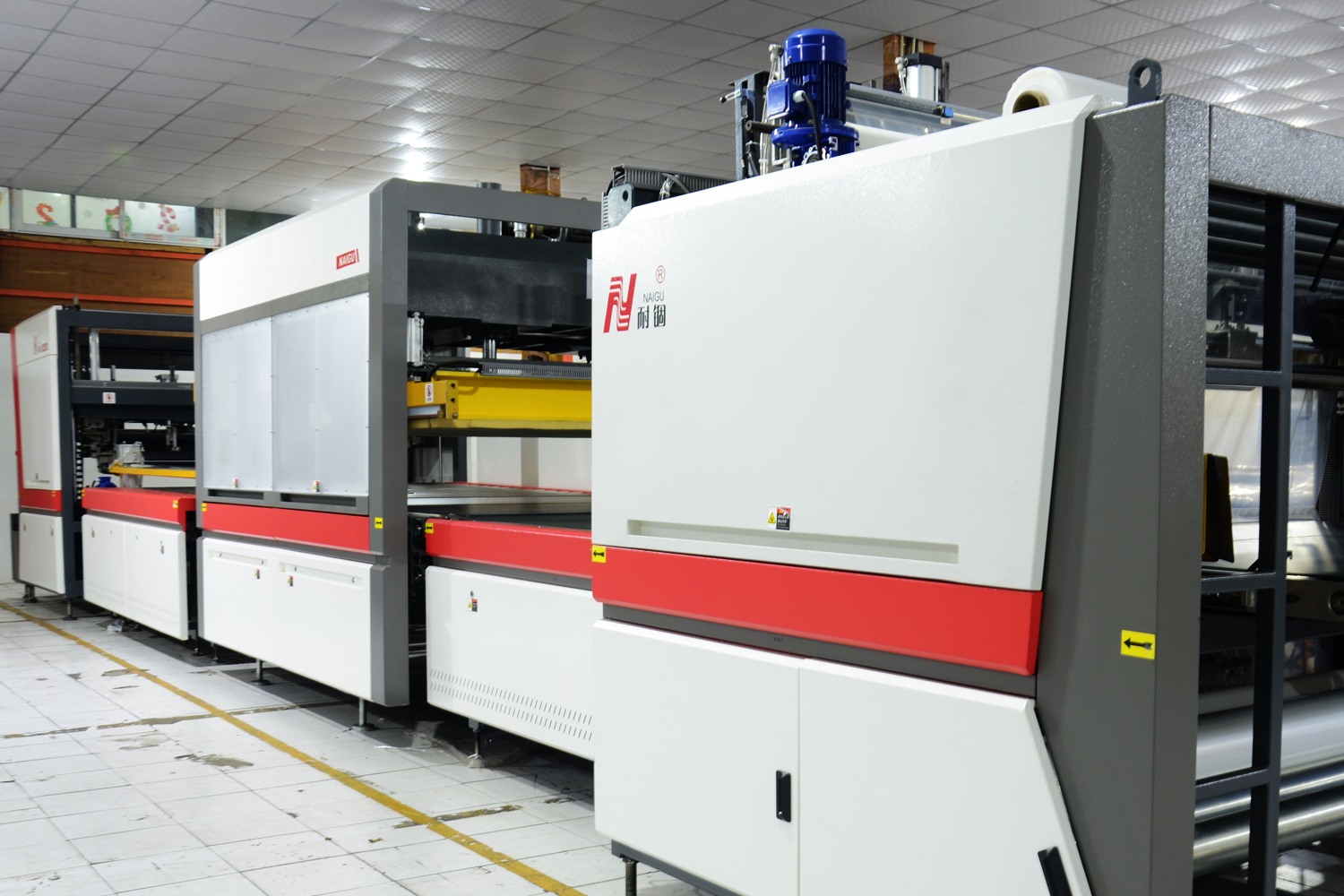

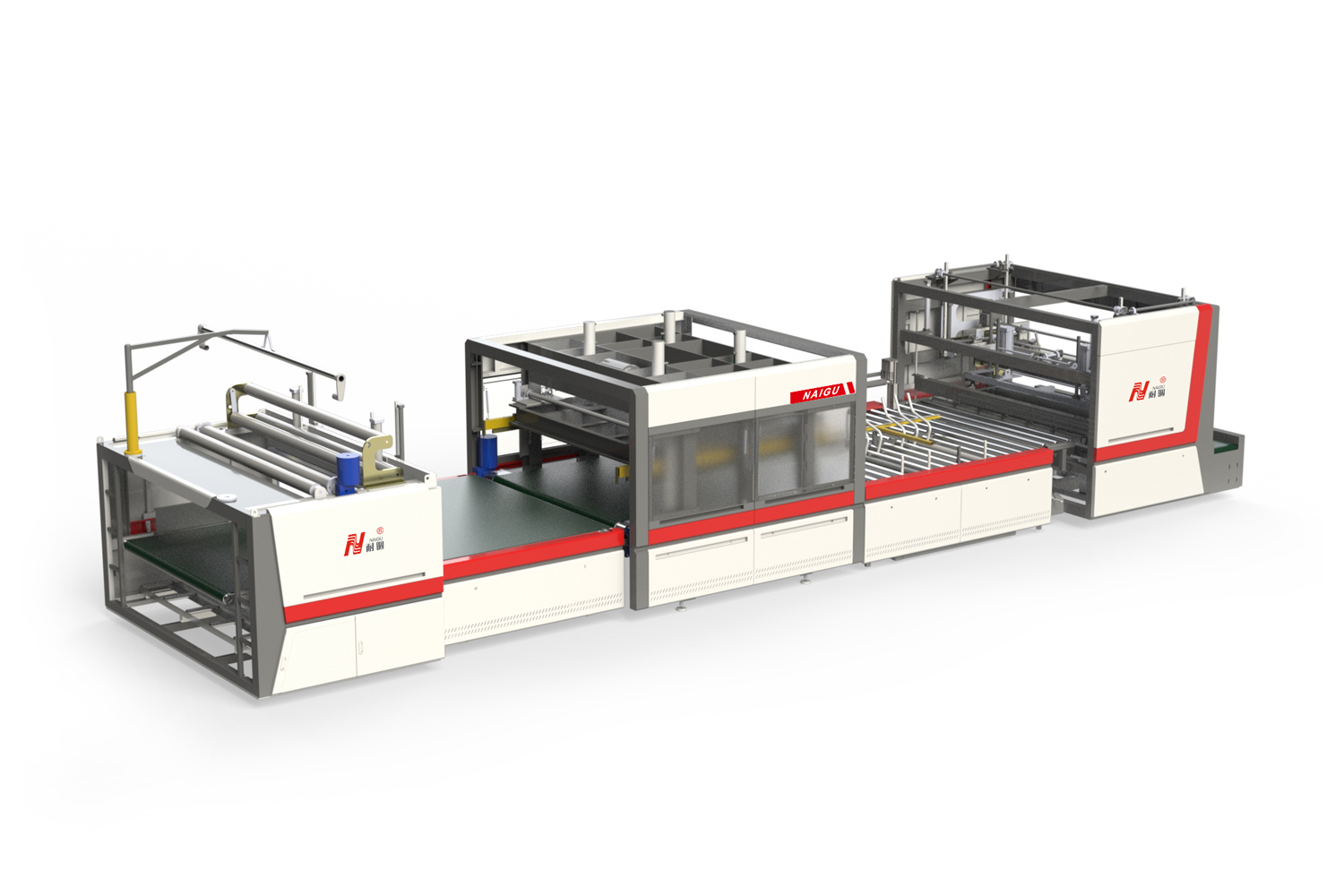

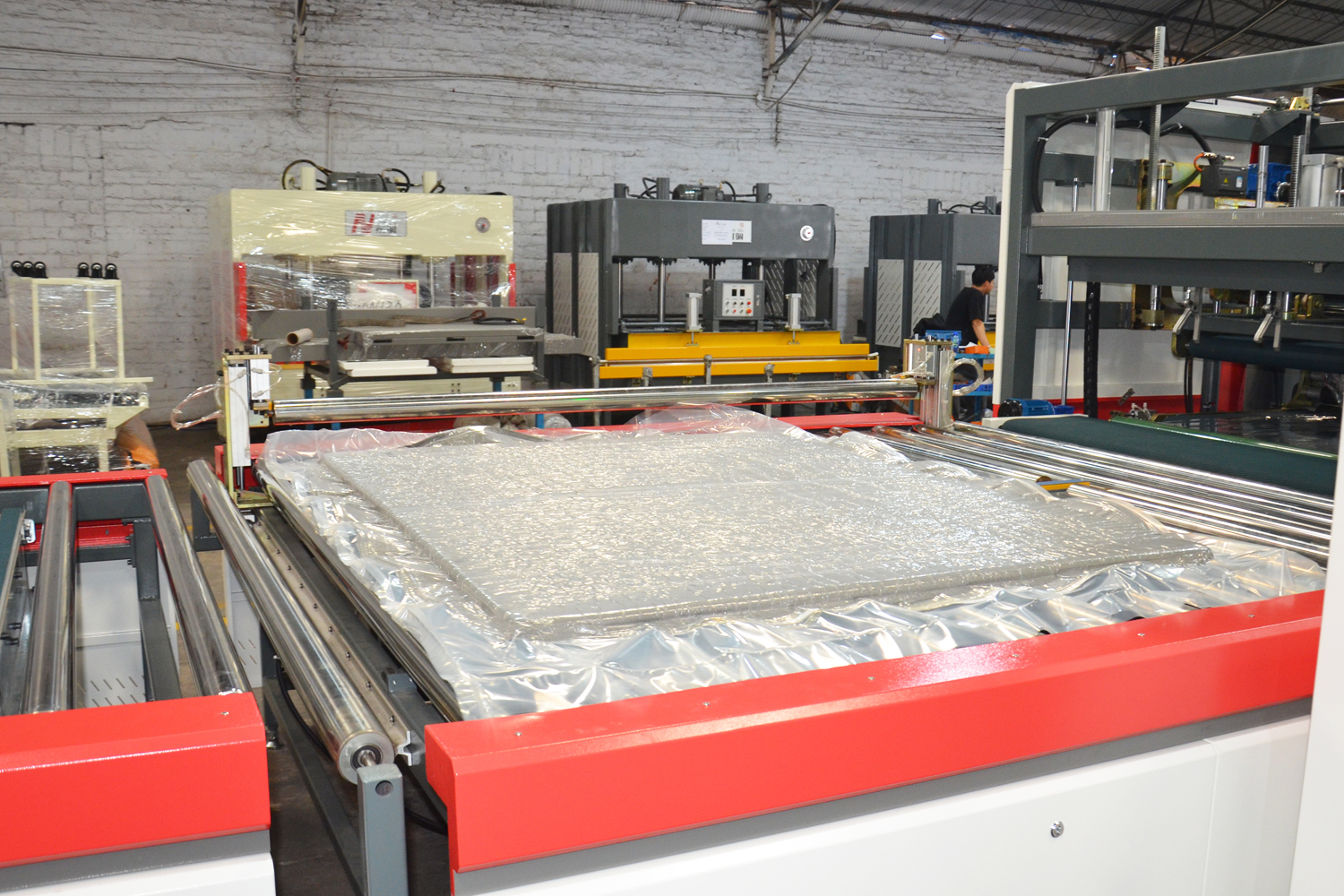

NG-22RS is the full automatic mattress roll pack machine with self-wrapping system, all types of mattress fed by conveyor and wrapped (fully automatic without any need for manual hand bagging) compressed, sealed and rolled.
|
Maximum Mattress Size |
2200x2000 MM |
|
Maximum Mattress Height |
450 MM |
|
Roll diameter range(Adjustable) |
220 MM - 480MM |
|
Maximum Pressure |
60T |
|
Efficiency |
30 Seconds /PCS |
|
Total Power |
45KW |
|
Voltage |
3 Phase AC 380V/50HZ (Customized ) |
|
Suitable Plastic material |
PE Plastic |
|
Air pressure |
0.6 - 0.8 MPA |
|
Net weight |
15000 KG |
|
External Dimension |
L13000*W3600*H3100MM |
Product advantages
▶ Strong applicability; self-adjustment for different sizes of mattresses.
▶ Automatic mattress folding and rotating function.
▶ Saving packaing costs; for the front compress machine used 0.07mm to 0.09mm thickness plastic film ,and the last roll packing machine used 0.04mm thickness film.
▶ Stable performance; uses Siemens control system ( PLC , HMI , Inverter ).
▶ Easy to operate; the control panel can be translated into various languages and is equipped with a remote system for easy installation and maintenance.
▶ High Capacity; 30 seconds/per roll ( mattress fed continuously , suitable to connect the mattress production line.
