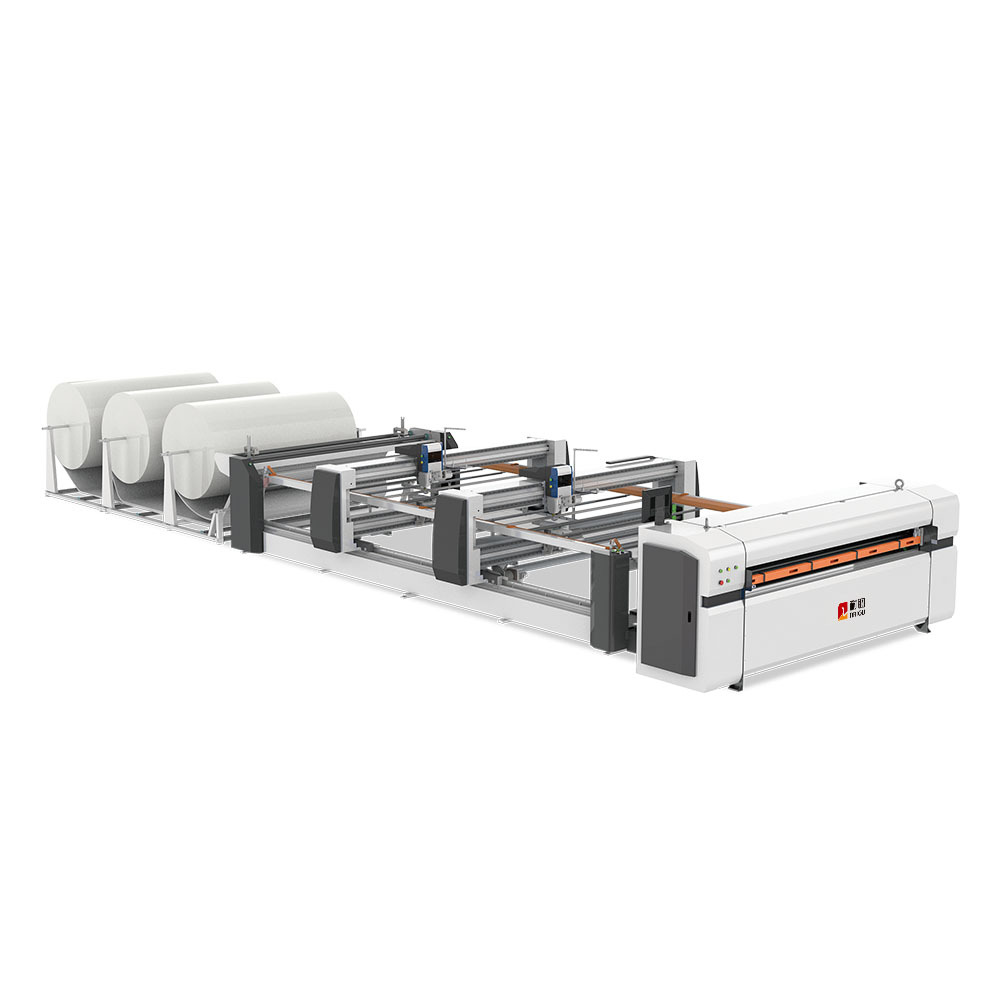

Double Beam Double Head Continuous Quilting Machine

This machine has an independent double saddle structure design and dual control system, which can simultaneously sew two mattress fabrics, with an efficiency twice that of a single head single needle machine. The land area is 1.2 times that of traditional single needle machines, and one machine is equivalent to the production capacity of two ordinary single needle machines.

3000

rpm

Rotating Speed

2200

Max Quilting Width

Max Quilting Thickness

Need More Details About This Quilting Machine?

Request A Quote

Convenient and fast custom fabric style controller

Our machinery is equipped with professional computer CNC software, which can import the fabric style you want and allow the machinery to produce it.
The machinery is equipped with various commonly used fabric styles. If you don't have a new style yet, you can try using our preset styles. I believe they are also very high-end styles

Style-1

Style-2

If you also have idea about the production of custom fabric style, then don't hesitate

Product Features

Stable nose

Using the German Dukep machine head, the sewing speed and stability are improved, and the machine speed can reach up to 3000 revolutions per minute.

Imported large rotary shuttle

Adopting imported large rotary shuttle, automatic thread breakage detection for any step stitching, and screen stitching at any point.

Professional system

Adopting a professional customized industrial computer system, it can accurately stitch various complex patterns.

Products Details

Work diagram

Technical specification

Dimension	12564×3800×1650mm
Gross weight	4500KG
Quilting width	2200mm
Rotating speed	3000rpm
Needle Type	DP*17 19#/ 21#/22#
Stitch length	2-8mm
Power	13kw
Voltage	380V/220V 50Hz/60Hz 3Phase
Quilting thickness	≤80mm

More Packing Machine In NAIGU

NAIGU is an expert in mattress packaging equipment. For fifteen years, we have been dedicated to developing packaging solutions for soft furniture (mattresses, foam pads, latex). Our technology is mature, and we possess packaging equipment suitable for various products.

Making Packing

Double Head Single Needle Continuous Quilting Machine

Automatic Hot Melt Glue Spraying Machine Line

Spring Mattress Making Machine Line

The Spring Mattress Making Machine Line is a comprehensive system designed for efficient production of high-quality spring mattresses. This automated line integrates various machines to handle each stage of mattress manufacturing, including spring assembly, cushioning, and final assembly. Ideal for large-scale manufacturers, it enhances production efficiency, ensures consistency, and reduces manual labor, delivering durable and comfortable spring mattresses.

NG-51MS full automatic mattress packaging machine

This machine is specialized in mattress film packaging, can achieve high package efficiency of 100-120 sheets/hour.

NG-61MS automatic mattress compress packing machine

It can achieve automatic film pack and compress the mattress up to 1/7 of its original thickness, greatly reduce the labors to bag the mattress and save space and cost.

All Automatic Compress Fold And Roll-packing Machine NG-22RS

It integrates mattress compression, half-folding and roll packing, with high capacity of 30 seconds per roll when mattress fed continuously.
