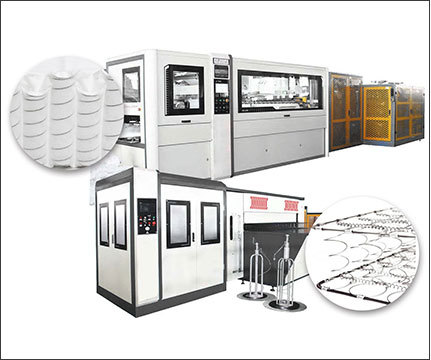

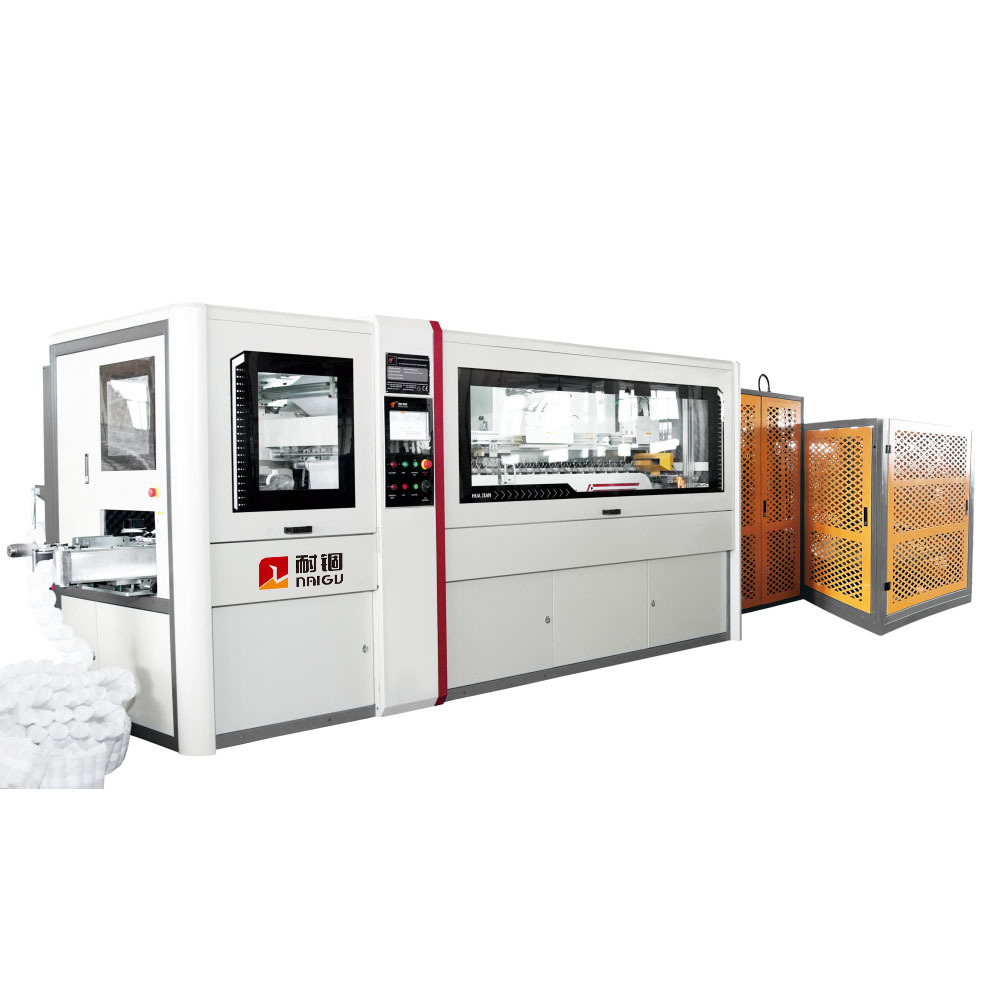

Automatic Pocket Spring Producing Machine

Language

Home > All Collections > Automatic Pocket Spring Producing Machine

The whole machine adopts safety protection function. And Functions include spring forming, heat-treat shaping, compressive and ultrasonic non-woven bagging.
This automatic pocket spring machine top speed can reach 180 springs/min. By the option ultrasonic pocket spring cutting machine, cutting job can be finished automatically, so the productivity is highly raised and the labor cost is reduced.

180

pcs

Springs per min

1.2

Max Fabric Diameter

650

Max Fabric Width

g/m²

Minium Fabric Thickness

Need More Details About This Foam Packing Machine?

Request A Quote

Automatic Pocket Spring Machine Features

1. Adapt to cylindrical and barrel shape springs.
2. The heat-treatment device can adapt to different spring height, easy for adjustment.
3. The non-woven feeder system, save material and labor.
4. Multiple fault detecting device, effectively reduced the wastage.
5. Use full-automatic coiling head.
6. Special protective device.
7. Easy to operation. One operator can oversee the operation of 3 sets JK-PS-130 pocket spring machines.
8. Digitalized and fully auto in manufacturing so operators don’t need to monitor the whole process.
9. The machine head use servo motor, no need to manually adjust the spring.

Technical specification

Spring Type	Barrel or Cylindrical
Capacity	180 Springs per min
Spring Waist ext Dia	Φ50-Φ75MM,Φ37-Φ50MM (＜Φ37MM or ＞Φ75MM on request）
Steel Wire Gauge	Φ1.4-Φ2.3MM(＜Φ1.4MM on request)
Pocket Height	70-220MM（＜70MM或＞220MM on request）
Fabric Width	≤650MM
Fabric Thickness	≥60G/M²
Fabric Diameter	≤1.2M
Main Drive Power	32KVA
Air Consumption	12M³/H
Weight	5200KG
Power Requirement	380V,3 Phase，50-60HZ（Option：415V-480V,220V）
