Industry 4.0 is revolutionizing mattress manufacturing by enabling real-time monitoring, data-driven decision making, and seamless machine-to-machine communication. Integrating your tape-edge sewing machine into this smart ecosystem unlocks:
Higher throughput through synchronized line balancing
Predictive maintenance to minimize unplanned downtime
Quality traceability with digital records for each mattress
Reduced logistics costs via optimized scheduling and inventory
In this guide, we'll walk through the key steps, technologies, and best practices to make your tape-edge sewing station a fully networked, intelligent component of your mattress line.

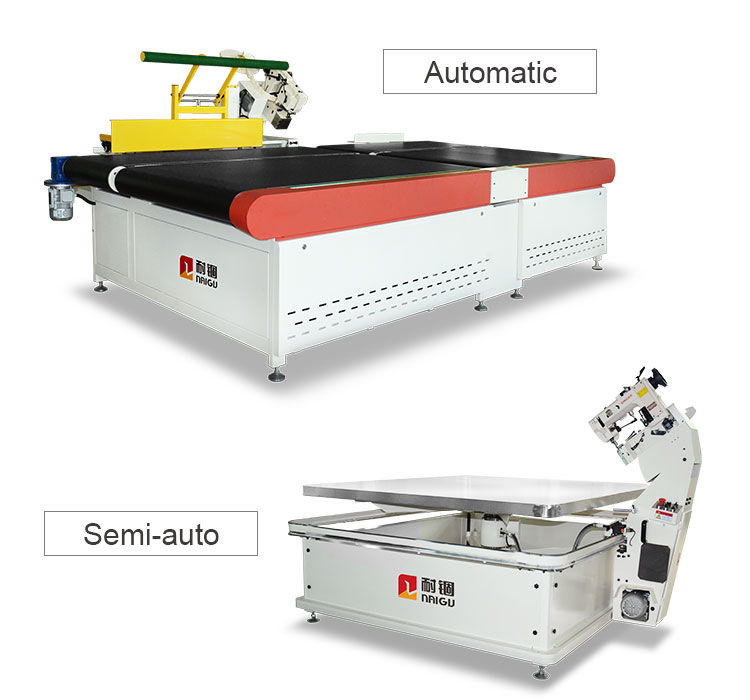

Before integration, audit your existing sewing machine:
Control Interface:
Does it have a built-in PLC or CNC controller?
Which communication ports are available (Ethernet, RS-485, USB)?
Data Output:
Can it export production data (stitch count, operational status, alarms)?
Are there onboard I/O channels for external sensors?
Mechanical Integration:
How does it interface physically (conveyor height, table alignment)?
What is its cycle time compared to upstream/downstream equipment?
Documenting these specs will guide your hardware and software integration plan.
Industry 4.0 relies on open, standardized protocols for interoperability. Common choices include:
| Protocol | Use Case | Pros | Cons |
|---|---|---|---|
| OPC UA | Cross-vendor machine communication | Platform-agnostic, secure, scalable | Requires server/client setup |
| MQTT | Lightweight IoT messaging | Low bandwidth, publish/subscribe model | Less suited for real-time PLC |
| Profinet | High-speed PLC networking (Siemens ecosystem) | Deterministic, real-time I/O transfer | Vendor-locked |
| Modbus TCP | Simple TCP/IP read/write registers | Ubiquitous support, easy to implement | Limited data model |
Tip: If you have a mix of brands on your line, OPC UA is often the best choice for a unified “digital backbone.”
Rather than sending every raw signal to the cloud, deploy an Edge Gateway next to your sewing machine to:
Aggregate and preprocess signals (stitch count, motor current, alarm flags)
Run local analytics (e.g., detect stitch-pattern anomalies)
Buffer data during network outages
Edge Gateway setup steps:
Mount the gateway in your control cabinet.
Connect to the sewing machine's Ethernet port or I/O bus.
Configure an OPC UA server on the gateway.
Map machine registers/tags to OPC UA variables.
Enable local scripts (e.g., Python or Node-RED) for on-prem analysis.
To orchestrate your entire line:
SCADA Integration:
Use your SCADA platform to visualize real-time sewing metrics on dashboards.
Set up alarms for stitch errors or machine faults.
MES Integration:
Feed production counts and quality data into your MES for tracking work orders.
Automate batch genealogy: each mattress's edge-sewing record is tagged with operator ID, time, and machine settings.
ERP Synchronization:
Push completed-mattress counts to your ERP to trigger inventory replenishment and logistics planning.
By continuously monitoring key indicators—motor current, vibration, temperature—you can predict when the sewing machine needs service:
| Indicator | Normal Range | Threshold Alert | Maintenance Action |
|---|---|---|---|
| Motor Current (A) | 2.5 – 3.0 | > 3.5 A | Check for stitch jams |
| Vibration (mm/s RMS) | < 4.0 | > 6.0 | Inspect bearings & mounts |
| Head Temperature (°C) | < 45 | > 55 | Verify cooling and tension |
Implement a Predictive Analytics model on your Edge Gateway or in the cloud to trigger maintenance tickets automatically when thresholds are exceeded.
Smart lines close the loop between quality inspection and machine parameters:
Inline Inspection Cameras: Capture seam integrity images downstream of sewing.
AI-Driven Defect Detection: Classify stitch defects (skips, misalignment).
Automatic Parameter Adjustment: Send commands back to the sewing machine PLC to tweak tension or speed.
This closed-loop approach can reduce rework by up to 30% and ensure consistent edge-seam quality.
At NAIGU's South Asian facility, integrating tape-edge sewing machines via OPC UA and an IIoT gateway achieved:
25% increase in line throughput
40% reduction in unplanned downtime
Real-time OEE (Overall Equipment Effectiveness) visibility on plant-wide dashboards
Key success factors: thorough machine audit, phased roll-out (start with one line), strong change-management training for operators.
Standardize Tag Naming: Use clear, consistent OPC UA tag names (e.g., SewingMachine01.StitchCount).
Secure Your Network: Segment IIoT traffic on a dedicated VLAN and enforce certificate-based authentication.
Train Your Team: Provide operators and maintenance staff with dashboards and alerts training.
Start Small: Pilot on a single sewing machine, validate data quality, then scale across lines.
Integrating your tape-edge sewing machine into an Industry 4.0 mattress line transforms it from a standalone station into a data-rich, autonomous asset. By leveraging open protocols (OPC UA), edge computing, predictive analytics, and closed-loop feedback, you'll drive:
Higher productivity through synchronized workflows
Lower costs via optimized maintenance and logistics
Superior quality with digital traceability and AI inspection
